XT243, XT1143

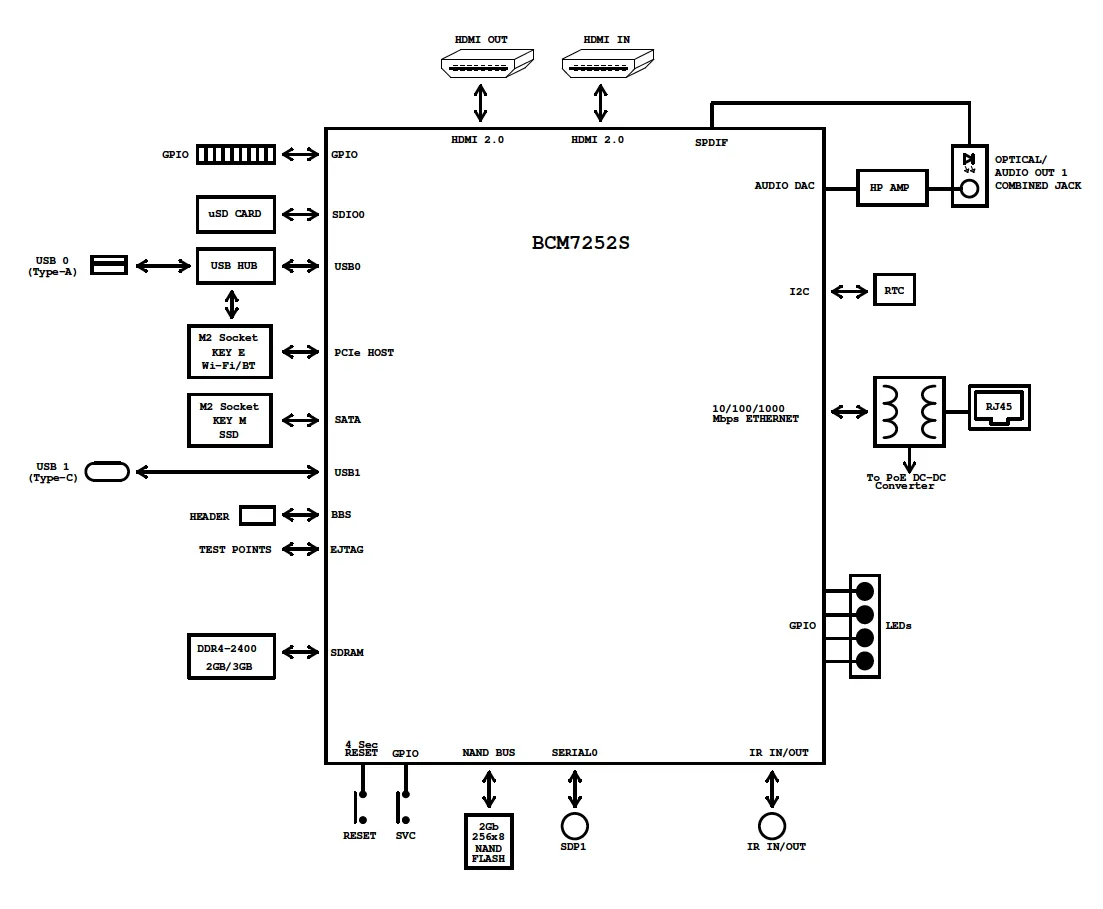

the brightsign xt243 and xt1143 media players can be used to decode images, audio, and video (at resolutions up to 4096x2160x60p) for digital signage and kiosk applications in addition to driving audio/video devices, these players can be controlled with various networked and built in interfaces this manual specifies the hardware interfaces and operational theory of the xtx43 series block diagram interfaces xt243 front back status leds wifi antenna connector (1 of 2) microsd card slot 3 5mm audio out hdmi® out 3 5mm ir in/out service button (svc) gpio (12 pins) reset button (reset) 12v\@3a molex power connector rj45 lan wifi antenna connector (2 of 2) xt1143 front back status leds wifi antenna connector (1 of 2) microsd card slot 3 5mm audio out hdmi out usb 2 0 (type a connector) hdmi in 3 5mm ir in/out usb 2 0 (type c connector) 3 5mm serial gpio service button (svc) gpio (12 pins) gpio reset button (reset) 12v\@3a molex power connector rj45 lan wifi antenna connector (2 of 2) pdf version https //archbee doc uploads s3 amazonaws com/aiw58 3npddpglgjivvls o4scm9qqvdinkdckaz9eq 20250624 155231 pdf
