XD232, XD1032, XD1132
The BrightSign XD232, XD1032, and XD1132 players can be used to decode images, audio, and up to two HD video streams for digital sign and kiosk applications. In addition to driving video and audio displays, these players can be controlled with various networked and built-in interfaces.
This reference manual specifies the hardware interfaces and operational theory of the BrightSign XD232, XD1032, and XD1132.
The term "XDx32" is often used to denote the XD232, XD1032, and XD1132 models and differentiate them from the XD230, XD1030, and XD1230 models.

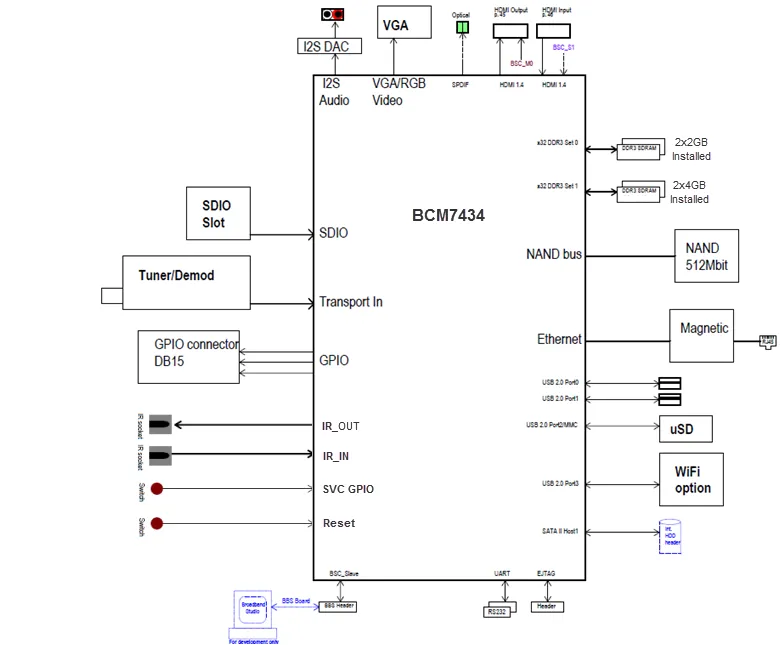

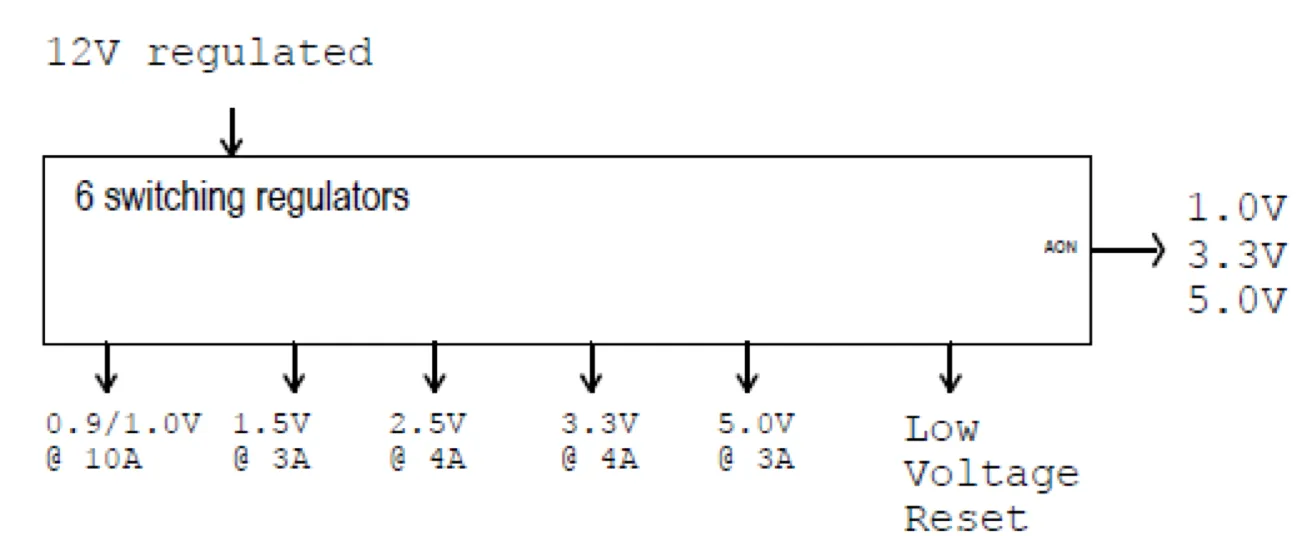

Block Diagram
Interfaces
XD232
Front | Left | Right | Back | Internal |
|---|---|---|---|---|
3.5mm IR in/out | GPIO service button | SDHC/SDXC flash card slot | 12V Molex power connector (4-pin) | microSD slot |
DA15 GPIO | | Status/error LED (red) | DE15 VGA video connector | WiFi Module connector |
| | Update LED (yellow) | Stereo 3.5mm mini plug for audio output | |
| | Power LED (green) | HDMI® Out | |
| | SD activity LED (green) | RJ45 Ethernet (PoE) | |
| | MicroSD presence LED (green) | GPIO reset button | |
| | Ethernet activity LED (green) | | |
| | WiFi activity LED (green) | | |
| | Server connection (green) | | |
XD1032
Front | Left | Right | Back | Internal |
|---|---|---|---|---|
3.5mm IR in/out | USB 2.0 (2x) | SDHC/SDXC flash card slot | 12V Molex power connector (4-pin) | microSD slot |
DE-9 RS232 serial (male)* | | Status/error LED (red) | DE15 VGA video connector | WiFi Module connector |
DA15 GPIO | | Update LED (yellow) | Stereo 3.5mm mini plug for audio output | |
SPDIF out | | Power LED (green) | HDMI Out | |
| | SD activity LED (green) | RJ45 Ethernet (PoE) | |
| | MicroSD presence LED (green) | GPIO reset button | |
| | Ethernet activity LED (green) | | |
| | WiFi activity LED (green) | | |
| | Server connection (green) | | |
XD1132
Front | Left | Right | Back | Internal |
|---|---|---|---|---|
3.5mm IR in/out | USB 2.0 (2x) | SDHC/SDXC flash card slot | 12V Molex power connector (4-pin) | microSD slot |
DE-9 RS232 serial (male)* | | Status/error LED (red) | DE15 VGA video connector | WiFi Module connector |
DA15 GPIO | | Update LED (yellow) | Stereo 3.5mm mini plug for audio output | |
SPDIF out | | Power LED (green) | HDMI Out | |
| | SD activity LED (green) | HDMI Input | |
| | MicroSD presence LED (green) | RJ45 Ethernet (PoE) | |
| | Ethernet activity LED (green) | GPIO reset button | |
| | WiFi activity LED (green) | | |
| | Server connection (green) | | |
* DE-9 is more commonly referred to as DB-9
