XD230, XD1030, XD1230
The BrightSign XD230, XD1030, and XD1230 players can be used to decode images, audio, and up to two HD video streams for digital sign and kiosk applications. In addition to driving video and audio displays, these players can be controlled with various networked and built-in interfaces.
This section specifies the hardware interfaces on the BrightSign XD230, XD1030, and XD1230.

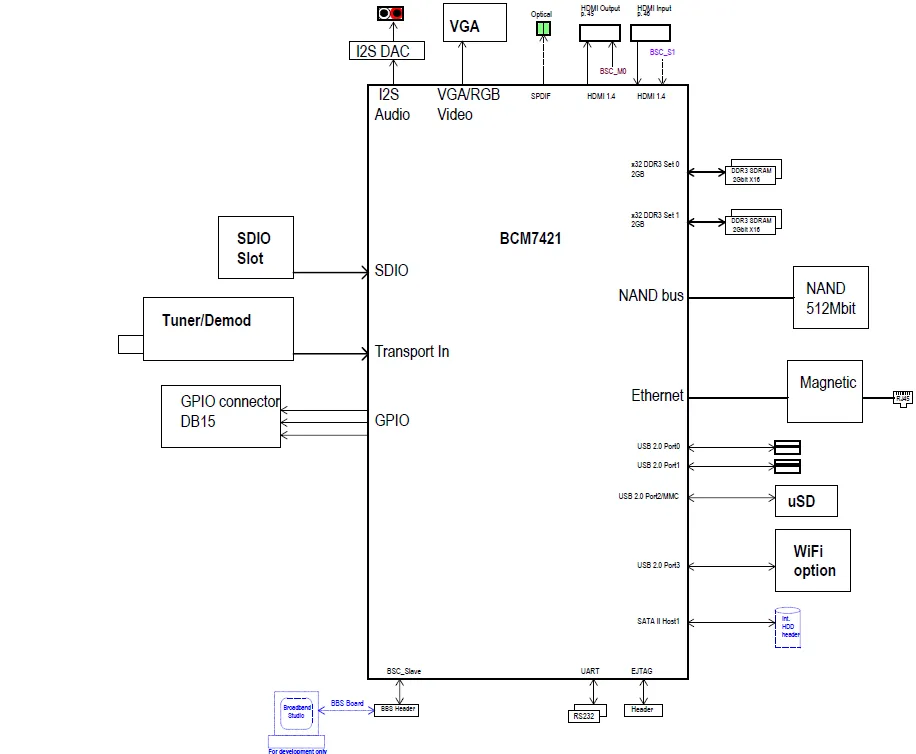

Block Diagram
Interfaces
XD230
Front | Left | Right | Back | Internal |
|---|---|---|---|---|
3.5mm IR out | GPIO button | SDHC/SDXC flash card slot | DE15 VGA video connector | MicroSD flash card slot |
| | Red status/error LED | Stereo 3.5mm mini plug for audio output | WiFi Module connector |
| | Yellow update LED | HDMI® Out | |
| | Green power LED | 10/100 Ethernet jack | |
| | Green SD activity LED | Reset button | |
| | Green MicroSD presence LED | 4-pin power connector for 12V power input at 3A | |
| | Green BrightSign Network connection LED | | |
| | Green Ethernet activity LED | | |
| | Green WiFi activity LED | | |
XD1030
Front | Left | Right | Back | Internal |
|---|---|---|---|---|
3.5mm IR out | GPIO button | SDHC/SDXC flash card slot | DE15 VGA video connector | MicroSD flash card slot |
DE-9 male RS-232 connector* | 2x USB 2.0 connector | Red status/error LED | Stereo 3.5mm mini plug for audio output | WiFi Module connector |
DA15 female for GPIO, IR in/out, and 3.3V power | | Yellow update LED | HDMI Out | |
S/PDIF out | | Green power LED | 10/100 Ethernet jack | |
| | Green SD activity LED | Reset button | |
| | Green MicroSD presence LED | 4-pin power connector for 12V power input at 3A | |
| | Green BrightSign Network connection LED | | |
| | Green Ethernet activity LED | | |
| | Green WiFi activity LED | | |
XD1230
Front | Left | Right | Back | Internal |
|---|---|---|---|---|
3.5mm IR out | GPIO button | SDHC/SDXC flash card slot | DE15 VGA video connector | MicroSD flash card slot |
DE-9 male RS-232 connector* | 2x USB 2.0 connector | Red status/error LED | Stereo 3.5mm mini plug for audio output | WiFi Module connector |
DA15 female for GPIO, IR in/out, and 3.3V power | | Yellow update LED | HDMI Out | |
S/PDIF out | | Green power LED | HDMI In | |
RF In for ATSC / Clear QAM | | Green SD activity LED | 10/100 Ethernet jack | |
| | Green MicroSD presence LED | Reset button | |
| | Green BrightSign Network connection LED | 4-pin power connector for 12V power input @ 3A | |
| | Green Ethernet activity LED | | |
| | Green WiFi activity LED | | |
*DE-9 is more commonly referred to as DB-9
