After installing the required software, you will need to take some preliminary steps before installing BSNEE. Please complete all steps before moving on to the InstallationInstallation page.

A mail server (STMP) is used to send application notifications such as error logs, new/restored passwords, and user creation notifications. These notifications are sent to end users and administrators. To set up the mail server during installation, you will need to prepare the following parameters:

BSNEE requires a Base Domain Name, which will be used to manage the application once it is installed. Four separate strings will be used by different internal services to regulate BSNEE:

During Step 6 of the installation process, you must enter the Base Domain Name. There are no supported IP addresses, so you must input only the domain name. The other strings will be automatically generated using the domain name.

BSNEE will not function properly until all strings are registered in the DNS, pointed to your BSNEE server IP address, and are resolvable by both server and client. You may do this prior to, or immediately after, installation. The example chart below shows which DNS records you need to register. It uses "mydomain.com" as the BSNEE Base Domain Name and 10.0.0.1 as the IP address for the BSNEE server.

*If this server already exists, but doesn’t have a corresponding DNS record, use the “A” Type instead of “CNAME”.

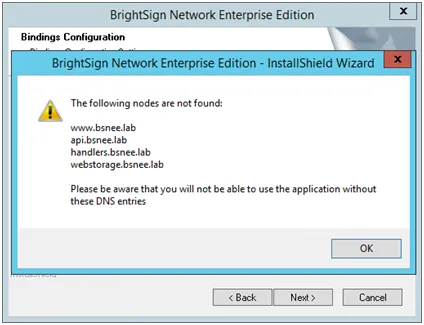

The default sub-domain names for “api”, “handlers”, and “storage” can be changed during installation. If you attempt to register the strings after installation, you will receive the following error message upon completing Step 6.

BSNEE requires persistent storage and temporary storage. You can select the storage location on your hard drive during Step 5Step 5 of the installation process. You can either create new persistent storage and temporary storage folders or configure ones that you already have to match the parameters outlined below.

This serves as a constant space for storing data used by devices. BSNEE can place data on either the local machine server or in a networked shared folder (NAS) within your corporate domain. Note that BSNEE does not support shared folders with separate workgroups.

Both locations should have high security standards. In order to use the networked shared folder with BSNEE, you must enable Persistent Storage folder sharing (SMB), expose this folder via HTTP, and make it available via a resolvable URL. If the Persistent Storage is located on the same server, you can create another web site in IIS that points to the physical location of the Persistent Storage folder (described on the Post-InstallationPost-Installation page). You will also need to add the corresponding record to your DNS server.

This storage is used for uploading large files. You should allocate no less than 5 GB for the temporary storage folder and locate the folder on the same server where BSNEE services will be installed.

If you want to configure BSNEE to use persistent storage located on the networked shared folder (NAS), complete the following steps before installing BSNEE:

Your networked shared folder should have the following permissions (this example uses Windows Server 2008 R2 as the NAS):

If you plan to locate persistent storage on the same server used for BSNEE services, you need to manually set up an additional IIS site. You can do this before or after installation, but we recommend completing this task after installation because the installer will create all required folders. See the Post-InstallationPost-Installation steps at the end of this guide for details.

We recommend you do the following during installation:

When IIS is used as a content server, only registered file formats can pass from the BSNEE Persistent Storage site to the web. By default, the IIS web server may not recognize certain media formats. You may also wish to use some custom extensions. Make sure to register the following special MIME types (in addition to any other desired MIME types) with the persistent storage web server.

These additional MIME types are required for Windows Server 2008 / 2008 R2 (IIS 7 or 7.5):

Once all MIME types are registered and all other preliminary steps are complete, you’re ready to install BSNEE.

In order to access the BSNEE Administrator UI after installation, you will need to register two administrator roles with your Active Directory system.

BSNEE parses security group names to retrieve the BSNEE Network and BSNEE Role names. Security group names must be formatted in accordance with the Group Name Template parameter (BSNEE-{NetworkName}-{RoleName} by default) set during installation in the LDAP Server ConfigurationLDAP Server Configuration step. You will first need to create two security groups in Active Directory and then add two users to them:

BSNEE has two sets of predefined system Roles:

To add more users to BSNEE, you will need to create at least one additional BSNEE Network (being logged into BSNEE as a member of the “admin” Network) and one security group in the Active Directory for Administrators Role. One BSNEE Network can then be used for multiple BSNEE users assigned to different BSNEE Roles on that Network.

BSNEE will automatically import Active Directory users to the BSNEE database when those users first login, and it will continue updating user profiles with changes as they occur on the LDAP server.
