HD222, HD1022
The BrightSign HD222 and HD1022 media players can be used to decode images, audio, and video (at resolutions up to 1920x1080x60p) for digital-signage and kiosk applications. In addition to driving audio/video devices, these players can be controlled with various networked and built-in interfaces.
This page specifies the hardware interfaces and operational theory of the HD222 and HD1022.

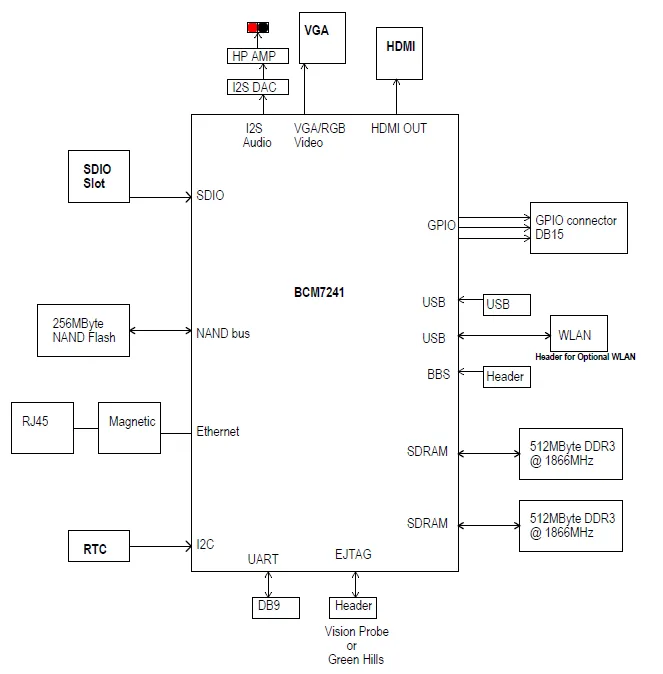

Block Diagram
Interfaces
HD222
Front | Left | Right | Back |
|---|---|---|---|
3.5mm audio out | GPIO service button | SDHC/SDXC flash card slot | 3.5mm audio out |
DA15 GPIO | | Status/error LED (red) | GPIO reset button |
| | Update LED (yellow) | VGA out |
| | Power LED (green) | HDMI® out |
| | SD activity LED (green) | RJ45 Ethernet |
| | | 5V@3A barrel power connector |
HD1022
Front | Left | Right | Back |
|---|---|---|---|
3.5mm audio out | GPIO service button | SDHC/SDXC flash card slot | GPIO reset button |
DA15 GPIO | USB 2.0 | Status/error LED (red) | VGA out |
DE-9 RS232 serial (male)* | | Update LED (yellow) | HDMI out |
| | Power LED (green) | RJ45 Ethernet |
| | SD activity LED (green) | 5V@3A barrel power connector |
*DE-9 is more commonly referred to as DB-9
