HD120, HD220, HD1020
The BrightSign HD120, HD220, and HD1020 players can be used to drive a variety of HDTV and computer monitors for digital sign and kiosk applications. In addition to driving a video display, these players have many different built-in interfaces that allow them to be controlled.
This section specifies the hardware interfaces on the BrightSign HD120, HD220, and HD1020.

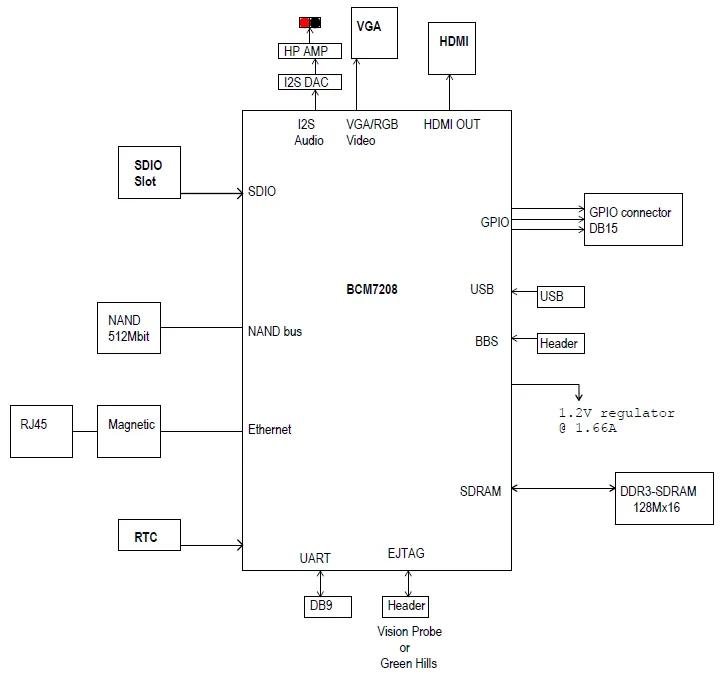

Block Diagram
Interfaces
HD120
Front | Left | Right | Back |
|---|---|---|---|
DA15 female for GPIO, IR in/out, and 3.3 V power | GPIO button | SD/SDHC flash card slot | Reset button |
| Stereo 3.5mm mini plug for audio output | Red status/error LED | DE-15 VGA video connector* |
| | Yellow update LED | HDMI® connector |
| | Green power LED | Power plug for 5 V power input at 3 A |
| | Green flash activity LED | |
HD220
Left | Right | Right | Back |
|---|---|---|---|
GPIO button | SD/SDHC flash card slot | SD/SDHC flash card slot | Reset button |
Stereo 3.5mm mini plug for audio output | Red status/error LED | Red status/error LED | 10/100 Ethernet jack |
| Yellow update LED | Yellow update LED | DE-15 VGA video connector* |
| Green power LED | Green power LED | HDMI connector |
| Green flash activity LED | Green flash activity LED | Power plug for 5 V power input at 3 A |
HD1020
Front | Left | Right | Back |
|---|---|---|---|
DE-9 male RS-232* | GPIO button | SD/SDHC flash card slot | Reset button |
DA15 female for GPIO, IR in/out, and 3.3 V power | USB connector | Red status/error LED | DE15 VGA video connector* |
| Stereo 3.5mm mini plug for audio output | Yellow update LED | HDMI connector |
| | Green power LED | Power plug for 5 V power input at 3 A |
| | Green flash activity LED | |
* DE-9 is more commonly referred to as DB-9
