Display a Direct View LED
This page / section pertains to BrightAuthor Classic, our legacy app. BrightSign Author is our latest app for managing content and players.
Development of BrightAuthor Classic has largely ceased and the app will eventually be deprecated and replaced with BrightSign Author.
To create an LED walls or walls using BrightAuthor Classic, send a standard resolution that is greater than the pixel resolution of the wall, and common to both the player and the LED Wall processor. Then use the canvas tool to match the pixel resolution. The Least Common Resolution is the lowest resolution that both the LED Wall Processor can accept as a input, and the lowest resolution the player can output, that is greater than the resolution of the physical LED pixels connected to the LED Wall processor.
For example, if you have a LED Wall Processor that accepts 3840x2160 using the HDMI input of the LED Wall Processor, and has a LED physical pixel layout of 2560x960:
- From the player, send 3840x2160 to the LED Wall Processor.
- Use the Layout tab to shrink the zone where your content will play to 2560x960.
- Set the player to Force Resolution and Use Graphics Plane when creating a new project to get the 3840x2160 layout canvas.

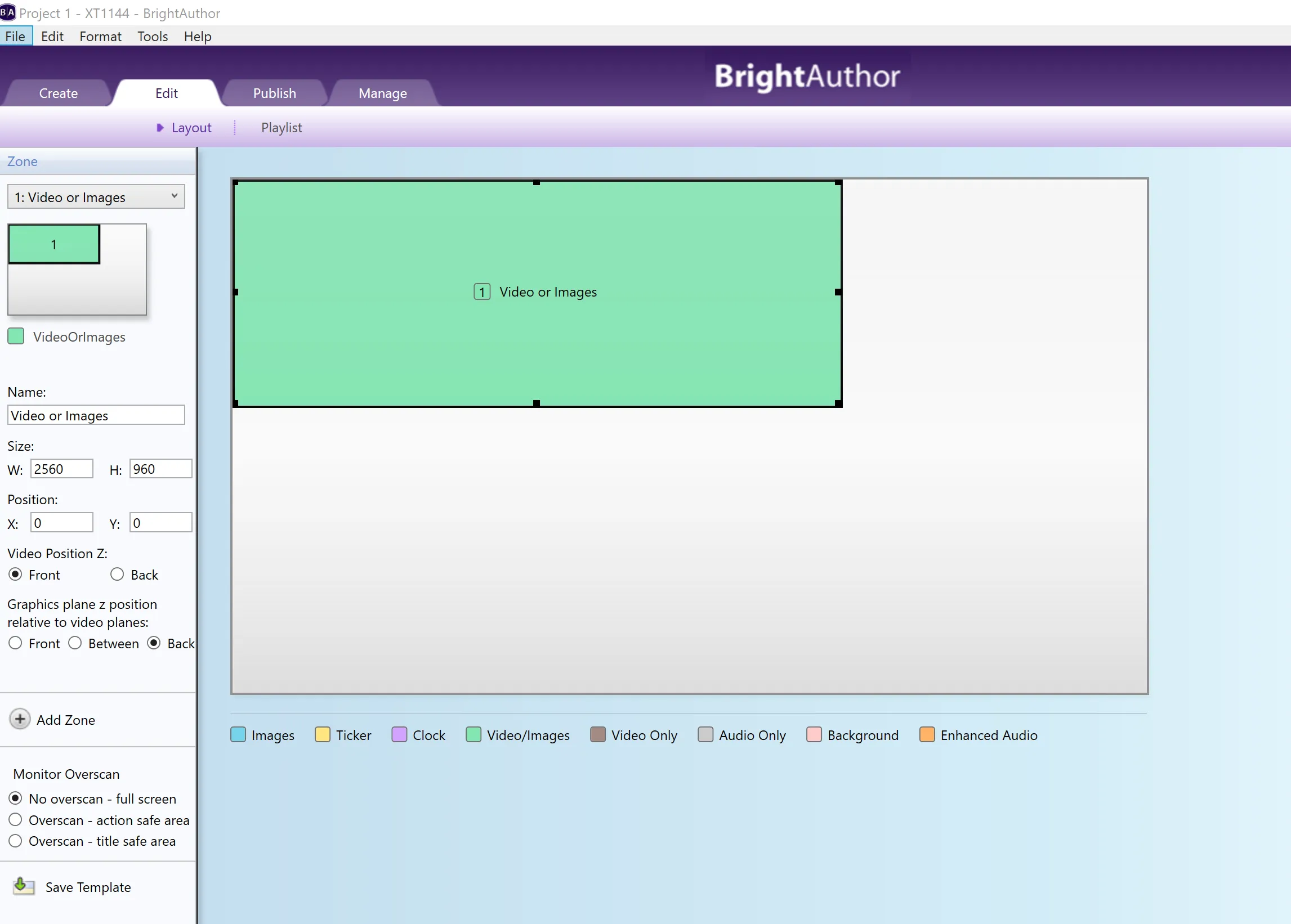

The Layout tab should look something like this, where the zone pixels would be the size of your LED walls:
BrightSign players do not support 3840x2160 over DisplayPort, and do not have a DisplayPort output. If you have a LED that is using a wall processor that only accepts 4K(3840x2160) using the LED wall processor's DisplayPort input and you have a physical LED pixel resolution that is either greater than 1920 pixels in width or greater than 1080 pixels in height, contact the LED manufacture for guidance in creating a LED wall that accepts 4K( 3840x2160) using a HDMI 2.0 input.
