Create a BrightWall™

6 min

This page / section pertains to BrightSign Network (often abbreviated BSN), our legacy cloud platform. Our latest cloud platform is BSN.Cloud. Development of BSN has largely ceased and the platform will eventually be deprecated and replaced with BSN.Cloud.

BrightWall™ is not supported in the current version of BrightAuthor:connected and BSN.cloud. BSN BrightWall™ requires BrightAuthor Classic versions 4.1.1.14 or later.

You can also use the Autowall Plugin Kit to publish video walls that automatically resize to fit the number of players in the wall.

Follow these steps to create a BrightWall group, create a BrightWall within the BrightWall group, and publish your presentation to the group:

Create a BrightWall Group

Sign in to your BrightSign Network account at Tools > Sign In to BrightSign Network.
After creating your BrightWall presentation, click Upload to network in the top-right. This will upload both the BrightWall presentation and BrightWall configuration file to the BrightSign Network.
Go to the Manage > Status tab.
Expand the BrightWall Groups section at the bottom of the screen.
Click Add BrightWall Group.
Enter a BrightWall group name and select a BrightWall configuration. The BrightWall configuration will be applied to every BrightWall created within the group. Click OK when finished.

Create and Publish a BrightWall within the Group

Once you’ve created a BrightWall group, you will need to set up players as part of the BrightWall configuration:

Go to Tools > Setup BrightSign Unit.

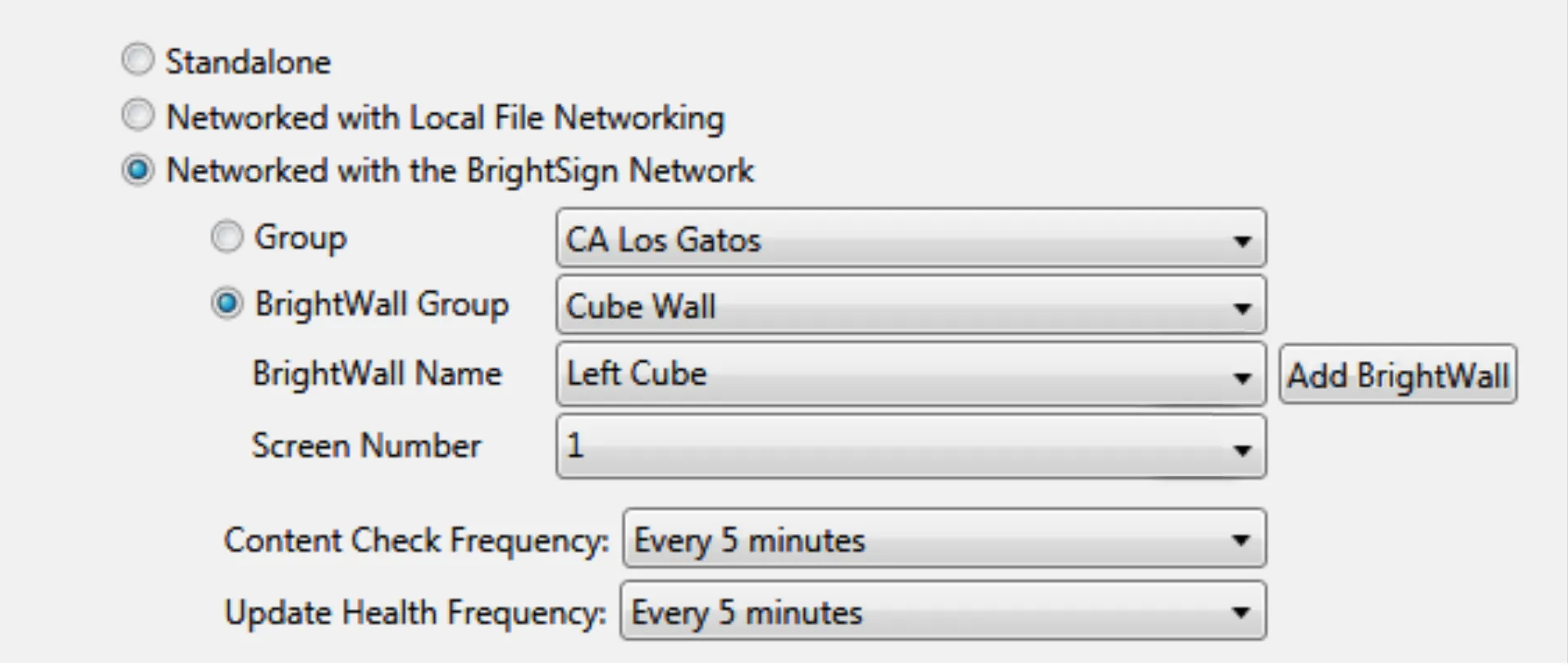

Select the BrightWall Group option under Networked with the BrightSign Network.(see Image 1, below).
Click the Add BrightWall button to add a new BrightWall to the BrightWall group. Enter a BrightWall name and click OK.
Use the Screen Number drop down list to specify the section of the BrightWall to which the player belongs. Screens are numbered by row, starting from the top-left section of the BrightWall. Note that you must set up the player again to change the positioning of the player in the BrightWall.
Enter the rest of the player configuration settings as desired and set up the player. and repeat to set up every player in the BrightWall—make sure to use the same BrightWall Group and BrightWall Name for all players in the BrightWall.
Go to the Publish > BrightSign Network tab and select the BrightWall Presentations option.
Under Select BrightWall Group to Schedule, select the BrightWall group you created earlier.
Add one or more BrightWall presentations to the schedule.
Select Publish schedule. Make sure all the players in the BrightWall are powered up and connected to the Internet. Allow time for the players to download the content, reboot, and synchronize playback.

Image 1

Add a New BrightWall to the Group

Use the Add BrightWall option during player setup to add additional BrightWalls to the BrightWall group. A new BrightWall will use the same configuration and be scheduled with the same presentations as other BrightWalls in the group.

Using Configuration Files

Each BrightWall presentation within a BrightWall group must use the same configuration file. If you want to create additional BrightWall presentations with different configuration files, you will need to create additional BrightWall groups in the Manage > Status tab.

Retrieving Configuration Files from BSN

If you don’t have the original configuration file (for example, if the user who created the original configuration file is on a different PC), you will need to retrieve it from BSN:

Navigate to the Manage > Presentations tab.
Expand the BrightWall Configurations section.
Right-click the original configuration file and select Download to save the file to your hard drive.
When creating a new BrightWall presentation, use the Browse button to locate and select this configuration file.
