BrightSign has released the Series 3 line of player models (XTx43, XDx33, HDx23, LS423). If you've been buying Series 2 players (4Kx42, XDx32, HDx22, LSx22), use this page to determine which Series 3 model to use as a replacement.

We've made a number of changes to connectors to improve the form factor and functionality of the player.  Each change is described below:

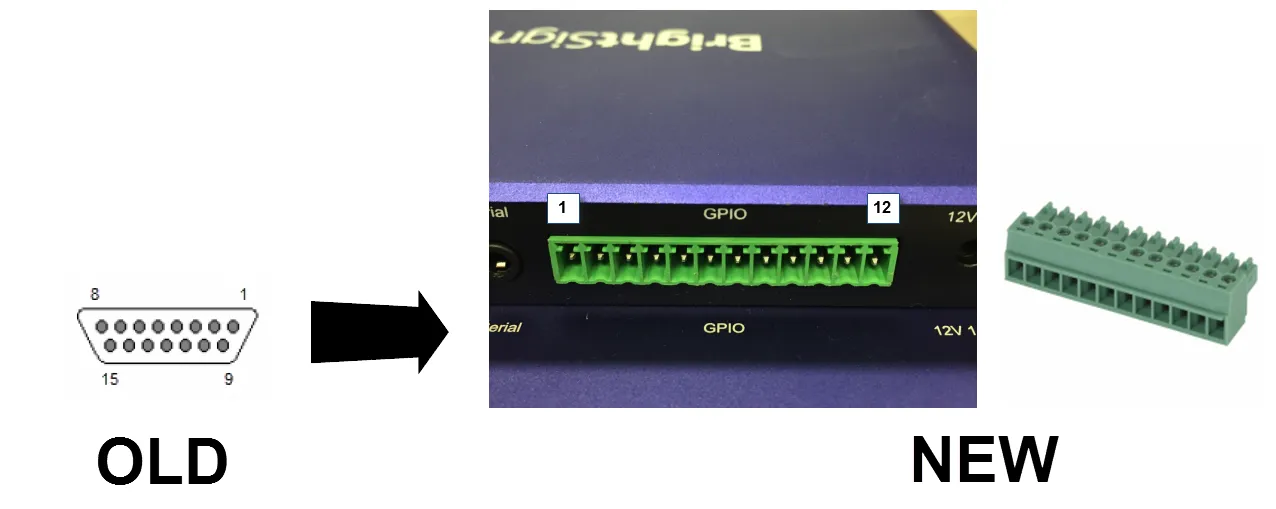

The DA-15 GPIO connector on previous models has been replaced with a standard 12-pin GPIO design manufactured by Phoenix Contact, Wurth Electronics, and others. Pluggable GPIO terminal blocks can be inserted into the GPIO connector to make bare-wire contacts (see here for an example part). These terminal blocks can be purchased from the BrightSign Store. If you wish to source your own terminal blocks, make sure to use 4-pin or 6-pin blocks (12-pin blocks are extremely difficult to remove from the GPIO port).

The DE-9 (more commonly referred to as DB-9) serial connector on previous models has been replaced with a 3.5mm serial jack. The new serial jack supports the same signaling parameters as the DE-9 connector; however, it does not have a pin to provide 5V of power for peripherals.

The XT1143, XD1033, and LS423 feature a USB Type C connector, whereas all other models use USB Type A only.

On Series 3 models, digital audio out (SPDIF) is combined with analog audio out on the 3.5mm connector. This means that all new models except for the LS423 support digital audio; it also means that a 3.5mm SPDIF connector is required for digital audio applications.

This chart lists the connectors that the Series 2 and Series 3 models feature. Use it to determine which model to buy for specific functions:

*USB Type C only.
